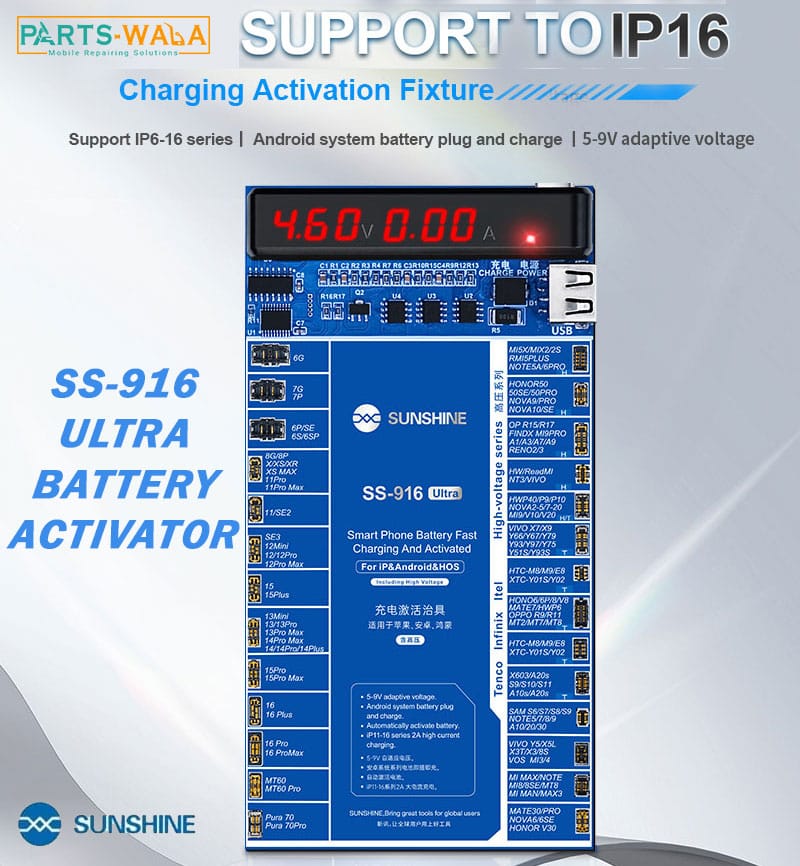

SUNSHINE SS-916 Ultra IP Android Charging Activation Fixture (V2.0)

📌 What It Is

The SUNSHINE SS-916 Ultra IP Android Charging Activation Fixture (V2.0) is a professional-grade diagnostic tool designed for Android device repair and board-level testing. It allows technicians to activate charging circuits and simulate battery power on Android phones — especially models with integrated battery connectors or “deep battery logic” protection — without needing the original battery installed.

This V2.0 version is an upgraded, ultra-precise charging activation fixture compatible with a wide range of Android devices, making it ideal for advanced power-on troubleshooting, charging circuit diagnostics, and power system verification during mobile repairs.

🔧 Key Features

⚡ Charging Activation & Power Simulation

Enables charging circuit activation on Android devices without a battery.

Lets you power on and test charging behavior, monitor current, and verify power input when charging components are faulty.

📱 Wide Android Compatibility

Supports a large spectrum of Android models (Samsung, Xiaomi, Oppo, Vivo, Realme, Motorola, and more).

Works with devices that require specific charging flags or IC activation to boot or charge.

📌 Ultra IP Fixture Design (V2.0)

Upgraded fixture platform designed for precise contact alignment with motherboard test points and battery pads.

Provides stable and consistent power signals to the device without unreliable connections or battery mis-detection.

🛡 Improved Contact & Stability

Built-in high-quality contacts ensure stable, repeatable connection with charging pins and battery test pads — reducing misreads, power dropouts, or false faults.

🔄 Professional Workflow Integration

Great for power IC diagnostics, charging loop testing, and power path verification before assembling or replacing components.

🔧 Built-In Safety & Protection Ready

Designed to work with regulated DC power supplies (sold separately) and safe current-limited setups — protecting boards from overcurrent or shorts.

🧰 Durable Workshop Accessory

Constructed from strong PCB and fixture materials capable of repeated workshop use without alignment degradation or contact wear.

📍 Typical Uses

✔ Test and activate charging circuits without a battery installed

✔ Diagnose power-on failure and charging faults

✔ Battery connector / BMS logic troubleshooting

✔ Verify power IC and charging paths

✔ Monitor charging current behavior during repair cycles

✔ Bench testing for Android boards in service centers

🧠 Why It’s Useful

Some Android devices won’t charge, boot, or even show charging indicators when the battery is removed — due to integrated logic protections on modern boards. The SUNSHINE SS-916 Ultra IP Android Charging Activation Fixture V2.0 overcomes this challenge by:

Simulating stable battery/charging power

Allowing precise measurement and diagnostic tests

Reducing battery plug-in cycles and wear

Speeding up troubleshooting and repair validation

Helping pinpoint power, charging, or component faults more reliably

This makes it a must-have tool for mobile repair professionals, bench technicians, and service labs focusing on charging system diagnostics and board power issues.

📦 What’s Included

1 × SUNSHINE SS-916 Ultra IP Android Charging Activation Fixture (V2.0)

(Required regulated DC power supply and connection leads typically sold separately.)

📈 Ideal For

Android phone repair technicians

Charging and power circuit diagnostics

Board-level testing stations

Refurbish and service centers

Electronic fault analysis labs
